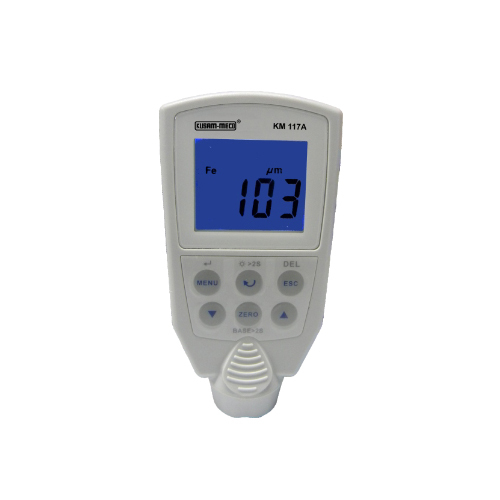

Model KM 117A Digital Coating Thickness Gauge

Name: Model KM 117A Digital Coating Thickness Gauge
Brand: INDUSTRIAL SUPPLY SYNDICATE

Get a Price/Quote

MOQ : 10 Pieces

Model KM 117A Digital Coating Thickness Gauge Specification

Equipment Type
Digital Coating Thickness Gauge

Measurement Range
0-1250m

Measuring Units
m/mil

Temperature Range
0C to 40C

Resolution
1m

Model
KM 117A

Output
LCD Display

Dimension (L*W*H)
110 x 53 x 24 mm

Operating Temperature
0C to 40C

Power Supply
2 x 1.5V AAA batteries

Power Consumption
Low power consumption

Accuracy
(2%+1m)

Display Type
Digital LCD Display with backlight

Range
0-1250m

Minimum Measuring Area
6 mm

Minimum Curvature Radius
1.5 mm (convex), 25 mm (concave)

Storage Humidity
< 80% RH

Battery Life
Up to 50 hours continuous use

Auto Power Off
Yes

Weight
Approx. 65g (without batteries)

Substrate Types
Ferrous/Non-ferrous metals

Calibration Method
Single and two-point calibration

Minimum Substrate Thickness
0.5 mm

Sampling Time
1 second

Data Storage
No internal memory

Model KM 117A Digital Coating Thickness Gauge Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Model KM 117A Digital Coating Thickness Gauge

The Model KM 117A Digital Coating Thickness Gauge stands out as a best-seller among its distinguished class. This ace measuring device is a must-have tool for any professional seeking prime accuracy in coating inspection. Designed for ferrous and non-ferrous substrates, this reduced-weight gauge delivers precise measurements with an intuitive digital LCD display and user-friendly backlight. With rapid 1-second sampling, low power consumption, and the advantage of auto power-off, it offers flexibility and efficiency, making it an essential for dealers, exporters, manufacturers, suppliers, and traders across India. No internal memory, yet a prime choice for spot-check tasks.

Applications and Directions for KM 117A

The Model KM 117A Digital Coating Thickness Gauge is tailored for swiftly measuring coating thickness on metal substrates, both ferrous and non-ferrous. For optimal results, select an appropriate calibration method-single or two-point-based on the job requirements. Ideal for industries such as automotive, manufacturing, and quality assurance, its compact design ensures portability. Other applications include field inspections, research, and maintenance where precise coatings evaluation is critical to performance and longevity.

FOB Port, Certifications, and Fast Delivery

The KM 117A Digital Coating Thickness Gauge is available for express shipping from key FOB ports in India. It is often offered at a sale price, ensuring competitive value. Each unit is carefully packaged for secure transit, maintaining integrity on arrival. The gauge complies with pertinent certifications for safety and quality, while delivery times are minimized-customers can expect prompt dispatch and arrival to streamline their operations without unnecessary delay.

FAQ's of Model KM 117A Digital Coating Thickness Gauge:

Q: How do I operate the Model KM 117A Digital Coating Thickness Gauge?

A: To use, power on the KM 117A, select the appropriate calibration method, and position the probe on the substrate. Measurements display instantly on the digital LCD.

Q: What types of materials can this coating thickness gauge measure?

A: The KM 117A is designed for use with both ferrous and non-ferrous metals, making it versatile for a variety of industrial applications.

Q: Where can this gauge be most beneficially applied?

A: This gauge excels in automotive, manufacturing, quality assurance, and research settings where accurate coating thickness is essential for quality control.

Q: What is the process for calibration and why is it important?

A: Calibration can be completed using single or two-point methods. Proper calibration ensures measurement accuracy for different substrates and varying coating thicknesses.

Q: When should I replace the batteries in the KM 117A?

A: Replace the two AAA batteries when the backlight dims or readings become unreliable. With normal use, battery life lasts up to 50 hours of continuous operation.
