ELF 3200 Series Digital Energy Power & V,A,F Meters

Send Inquiry

Request To Call Back

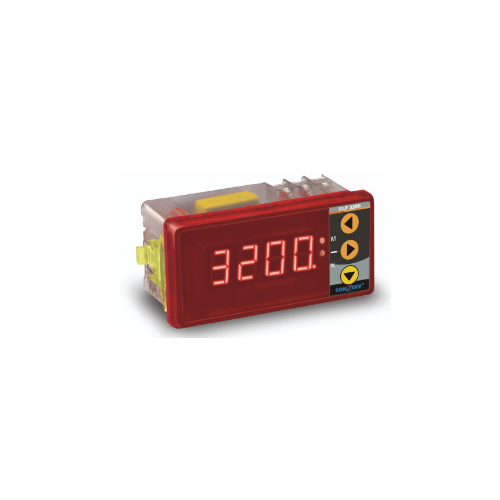

ELF 3200 Series Digital Energy Power & V,A,F Meters

Name: ELF 3200 Series Digital Energy Power & V,A,F Meters
Brand: INDUSTRIAL SUPPLY SYNDICATE

Get a Price/Quote

MOQ : 10 Pieces

ELF 3200 Series Digital Energy Power & V,A,F Meters Specification

Connecting Type
Screw Terminals

Equipment Type
Digital Energy Power and VAF Meter

Capacity
Supports Three Phase and Single Phase Systems

Resolution
1 Count

Frequency
45 to 65 Hz

Signal Type
Digital

Load Capacity
Suitable for Industrial Loads

Housing Material
Flame Retardant ABS

Dimension (L*W*H)
96 x 48 x 80 mm approx.

Sensitivity
High Measurement Sensitivity

Storage Temperature
-20C to 70C

Cut Size
92 x 44 mm

Measuring Units
V, A, Hz, kW, PF, Wh, kWh

Language
English

Input
Universal Input (Direct 3 Phase/Single Phase connection)

Connector
Screw Terminals

Temperature Range
0C to 55C (operating)

Current Range
0-5A (CT Secondary Input)

Humidity %
Up to 95% RH (non-condensing)

Application Media
Electrical Panel and Energy Monitoring

Connectivity Type
Panel Mount, Terminal Block

Mounting
Panel Mount

Sensor Type
Current Transformer (for Amps, kW)

Measurement Range
Up to 500V AC, 5A AC

Stability
Long-Term Stable Measurements

Protection
IP20 (front), IP00 (rear)

Model
ELF 3200 Series

Color
Red Display, Grey/Black Body

Operating Temperature
0C to 55C

Response Time
< 1 Second

Material
ABS Plastic Housing

Power Supply
230V AC / 110V AC / 24V DC (as per model)

Power Consumption
< 8 VA

Accuracy
Class 1.0

Display Type
7-Segment Red LED Display

Range
0-9999 (Digital display as per energy/power parameter)

Display Refresh Rate
Approx. 1 Second

Retrofit Capability
Yes, suitable for existing and new panels

Frequency Display
Yes (Hz)

Compliance
IS 13779 / IEC 62053 Standards

Panel Cutout
92 x 44 mm

Output Relay
Optional Relay Output for Alarms

Phase Indication
Yes, for L1, L2, L3

Display Digits
4 Digits Display

CT Ratio Programmability
Programmable CT Ratio

Wiring Configuration
3 Phase 3 Wire / 3 Phase 4 Wire / 1 Phase

Auxiliary Supply Voltage
As per Model [110/230V AC, 24V DC]

Data Retention
EEPROM Memory for Parameter Retention

Power Factor Display
Yes

ELF 3200 Series Digital Energy Power & V,A,F Meters Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About ELF 3200 Series Digital Energy Power & V,A,F Meters

Explore the rarefied excellence of the new ELF 3200 Series Digital Energy Power & V,A,F Meters-paragons of precision and reliability designed for energy monitoring. Buy online and benefit from a superb interface, four-digit LED display, and universal input suitable for existing or new panels. With retrofit capability, programmable CT ratio, and compliance with IS 13779/IEC 62053 standards, this meter ensures robust data retention and high measurement sensitivity. Optional relay output, wide-range voltage support, and superb panel mount design make it ideal for industrial load management. Experience long-term stability, fast response, and easy installation with the ELF 3200 Series meters.

Industrial Applications & Versatile Usage

The ELF 3200 Series Digital Energy Power & V,A,F Meters are crafted for monitoring and managing electrical parameters in industrial environments. Their superb adaptability allows seamless integration in electrical panels for factories, commercial complexes, infrastructure projects, and retrofit upgrades. With support for three-phase and single-phase systems, they become paragon instruments for energy audits, equipment protection, and overall energy management within control rooms, manufacturing lines, and utility substations.

Sample Policy, Packaging, and Export Market Insights

Every ELF 3200 Series meter is handed over after rigorous quality checks, reflecting its market value in both domestic and international markets. Sample policies are customer-oriented, fostering trust before volume commitments. Secure and robust packaging ensures safe delivery, enhancing overall satisfaction. The meters are available across India and exported to global markets, making them the preferred choice for dealers, exporters, manufacturers, suppliers, and traders searching for reliable and precise energy monitoring solutions.

FAQ's of ELF 3200 Series Digital Energy Power & V,A,F Meters:

Q: How can the ELF 3200 Series meters be used in existing electrical panels?

A: The ELF 3200 Series meters feature retrofit capability, enabling easy installation into existing panels without major modifications, making them ideal for upgrades and system enhancements.

Q: What measurements does the ELF 3200 Series meter display?

A: These meters display voltage (V), current (A), frequency (Hz), power (kW), power factor (PF), and energy consumption (Wh, kWh), with a clear 4-digit red LED readout.

Q: Where is the best area to install the ELF 3200 Series meters?

A: They are best suited for installation in industrial electrical panels, commercial buildings, utility substations, and infrastructure projects requiring reliable three-phase or single-phase energy monitoring.

Q: What is the process for programming the CT ratio on this meter?

A: Programming the CT ratio is simple and can be accomplished via the front panel controls, allowing you to tailor the meter for various current transformer specifications and system requirements.

Q: What are the main benefits of using the ELF 3200 Series for energy monitoring?

A: The main benefits include high measurement accuracy, enhanced data retention even during power loss, swift 1-second data refresh, optional alarm outputs, and robust compatibility with a wide range of input types and environments.

Q: How does the ELF 3200 Series support export and domestic markets?

A: With compliance to international standards (IS 13779/IEC 62053), superior packaging, and a customer-focused sample policy, the ELF 3200 Series holds significant market value and finds application in both export and domestic energy management markets.
