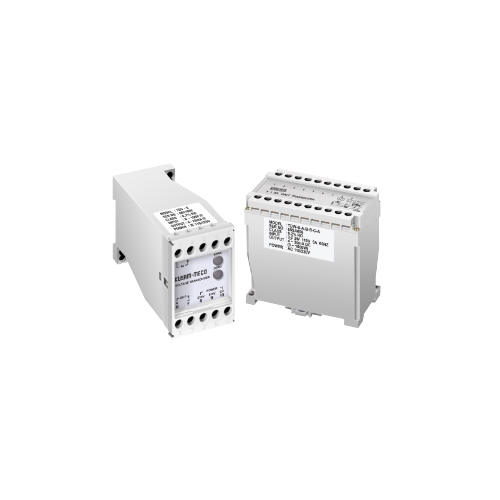

AC Current Transducer

Name: AC Current Transducer
Brand: INDUSTRIAL SUPPLY SYNDICATE

Get a Price/Quote

MOQ : 10 Pieces

AC Current Transducer Specification

Resistance
<600 (for current output)

Output
Analog (4-20mA, 0-5V, 0-10V)

Theory
Electromagnetic Induction

Type
AC Current Transducer

Accuracy
0.5% to 1% FS

Operating Voltage
12VDC, 24VDC, 48VDC, or 220VAC

Output Voltage
0-5V, 0-10V

Compensated Temperature
0C to +50C

Storage Temperature
-25C to +70C

Operating Temperature
-10C to +55C

Input Current Range
0-1A to 0-5A AC, extended ranges available

Weight
Approx. 150g

Dimensions
Approx. 90mm x 70mm x 58mm

Isolation Voltage
2kV (input/output/power)

Mounting Type
DIN Rail or Panel Mount

Response Time
<250ms

Frequency Range
45-65 Hz

Housing Material
Flame Retardant Plastic

AC Current Transducer Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About AC Current Transducer

Experience premier performance with our AC Current Transducer, engineered as a masterpiece in measurement technology. With special rates and exclusive dealer markdowns, you gain access to a potent device suitable for DIN rail or panel mounting. Operating across a broad input range (0-1A to 0-5A AC) and frequency (45-65 Hz), this transducer offers extended ranges, high isolation (2kV), and rapid response (<250ms). Crafted from flame-retardant plastic, it ensures accuracy (0.5% to 1% FS) and robust durability. Reliable output options (4-20mA, 0-5V, 0-10V) meet diverse industrial requirements. India's trusted manufacturer, exporter, supplier, and trader now offers unmatched access to this masterpiece solution.

Optimal Choice for Industrial Applications

The AC Current Transducer is suitable for power monitoring, automation, and industrial machinery. Its key features include wide input range, high insulation voltage, swift response, and electromagnetic induction theory, making it dependable for complex applications. Suitable for both DIN rail and panel mounting, the transducer operates across challenging temperatures and media. Designed for utility and process industries, it offers engineers and operators a reliable tool for accurate analog output and real-time current measurement.

Certifications, Markets, and Delivery Assured

This AC Current Transducer is certified for quality and safety, making it reliable for use in India's premier domestic markets. Samples are available for evaluation, ensuring you can test before large-scale deployment. Goods are swiftly shipped and delivery is ensured through a streamlined supply chain managed by experienced exporters and suppliers. Our delivery process is prompt and professional, aimed at maximizing satisfaction and timely supply to various industry sectors.

FAQ's of AC Current Transducer:

Q: How can I mount the AC Current Transducer in my system?

A: This transducer supports both DIN rail and panel mounting, offering flexible installation options suited to existing electrical panels or instrument enclosures.

Q: What is the input current range and accuracy of the transducer?

A: It covers a standard input current range of 0-1A to 0-5A AC, with extended ranges available, and provides measurement accuracy between 0.5% and 1% of full scale.

Q: When should I consider using this AC Current Transducer?

A: You should use this device for real-time current monitoring in automation, power distribution, or machinery control, especially where reliability, fast response, and isolation are critical.

Q: Where can I request a sample of this transducer?

A: Samples are available directly from the manufacturer, supplier, or trader in India. Contact your dealer to arrange delivery and evaluate the product before full purchase.

Q: What are the benefits of using electromagnetic induction theory in this transducer?

A: Electromagnetic induction provides a non-intrusive, accurate, and reliable means of measuring AC current without direct electrical contact, enhancing safety and performance in industrial environments.

Q: How are goods shipped and delivered?

A: Shipped goods are carefully packaged to ensure safety during transit. Delivery is managed through a reliable supply chain, providing prompt and secure arrival at your location.
