Vibration Meter

• Acceleration Range
• 0.1 to 199.9 m/s2

• Accuracy
• 5% of reading + 2 digits

• Application Media
• Vibration measurement

• Axis Type
• Single-axis measurement

• Color
• White

• Connector
• Standard probe connector

• Dimension (L*W*H)
• Approx. 185 x 68 x 30 mm

• Display Type
• Other, Digital LCD

• Material
• Plastic body

• Measurement Range
• 0.1 to 199.9 mm/s (velocity)

• Measuring Units
• mm/s, m/s2

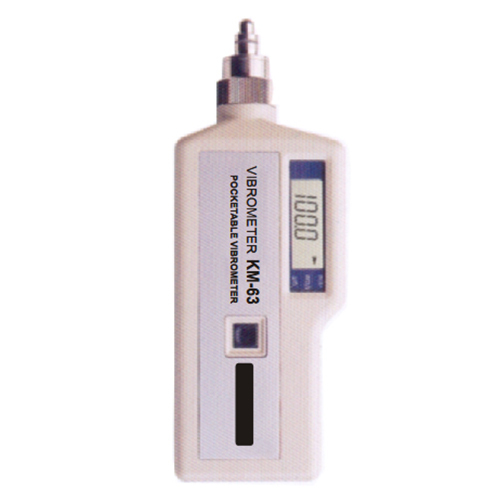

• Model
• KM 63

• Mounting
• Handheld

• Operating Temperature
• 0 to 50 C

• Output
• Digital display

• Power Supply
• 9V Battery

• Process Connection
• Magnetic base or hand probe

• Response Time
• 1 second

• Sensitivity
• Standard piezoelectric sensor

• Sensor Type
• Piezoelectric accelerometer

• Storage Temperature
• -10 to 60C

• Velocity Range
• 0.1 to 199.9 mm/s

• Equipment Type
• Digital Vibration Meter

• Acceleration Range
• 0.5~199.9 m/s2

• Accuracy
• (5% + 2 digits)

• Application Media
• Solid Surfaces (Machinery, Motors, Pumps, etc.)

• Axis Type
• Single Axis

• Color
• Black

• Connecting Type
• Cable-Connected Piezoelectric Accelerometer

• Connectivity Type
• Wired

• Connector
• BNC

• Dimension (L*W*H)
• 124 62 30 mm (main unit)

• Display Type
• Other, Large LCD display

• Frequency
• 10 Hz~1 kHz (velocity, displacement), 10 Hz~1 kHz (acceleration)

• Housing Material
• ABS Plastic

• Humidity %
• <80% RH

• Input
• Piezoelectric Accelerometer

• Language
• English

• Length
• Cable Length: Approx. 1.5 m

• Material
• ABS Plastic Housing

• Measurement Range
• Velocity: 0.5~199.9 mm/s; Acceleration: 0.5~199.9 m/s2; Displacement: 0.005~1.999 mm

• Measuring Units
• mm/s, m/s2, mm

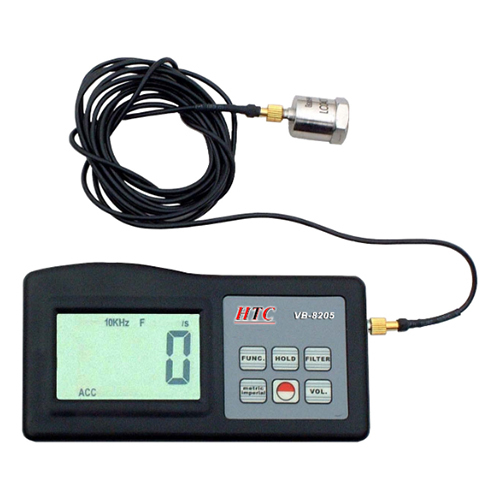

• Model
• VB 8205

• Mounting
• Handheld

• Operating Temperature
• 0C to 50C

• Output
• None indicated

• Power Consumption
• Approx. DC 6 mA

• Power Supply
• 4 x 1.5V AAA (UM-4) batteries

• Protection
• None indicated

• Range
• Velocity: 0.5~199.9 mm/s; Acceleration: 0.5~199.9 m/s2; Displacement: 0.005~1.999 mm

• Resolution
• 0.1 for velocity and acceleration; 0.001 for displacement

• Response Time
• About 1 second

• Sensitivity
• 100 mV/g

• Sensor Type
• Piezoelectric Accelerometer

• Signal Type
• None indicated

• Storage Temperature
• -10C to 60C

• Temperature Range
• 0C to 50C (operating)

• Velocity Range
• 0.5~199.9 mm/s

• Equipment Type
• Vibration Meter

• Accuracy
• 5%

• Application Media
• Solid (Vibration Measurement)

• Axis Type
• Single Axis

• Capacity
• 1 Device

• Color
• Red/Black

• Connecting Type
• Direct Probe

• Connectivity Type
• Direct Probe Connection

• Connector
• Standard Probe Connector

• Diameter
• Standard probe (approx. 10 mm)

• Dimension (L*W*H)
• 170 x 70 x 30 mm (Approximate)

• Display Type
• Other, Digital LCD

• Frequency
• 10 Hz - 1 kHz

• Housing Material
• ABS Plastic

• Humidity %
• 90% RH Non-condensing

• Input
• Piezoelectric Accelerometer

• Language
• English

• Length
• Standard Probe Length

• Material
• ABS Plastic Enclosure

• Measurement Range
• 10 to 199.9 mm/s

• Measuring Units
• mm/s RMS

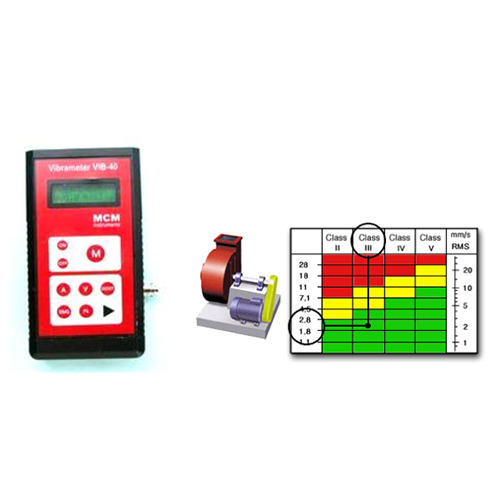

• Model
• VIB-40

• Mounting
• Handheld/Portable

• Operating Temperature
• 0C to 50C

• Output
• Numeric Value on Display

• Power Consumption
• Low

• Power Supply
• 9V Battery

• Process Connection
• Probe Contact Surface

• Protection
• Robust Casing

• Range
• 10 - 199.9 mm/s

• Resolution
• 0.1 mm/s

• Response Time
• < 1 Second

• Sensitivity
• High Sensitivity

• Sensor Type
• Piezoelectric Sensor

• Signal Type
• Analog Sensor Input

• Stability
• High Stability

• Storage Temperature
• -10C to +60C

• Temperature Range
• 0C to 50C (Operation)

• Velocity Range
• 10 - 199.9 mm/s
