Digital Transistor Tester

• Equipment Type

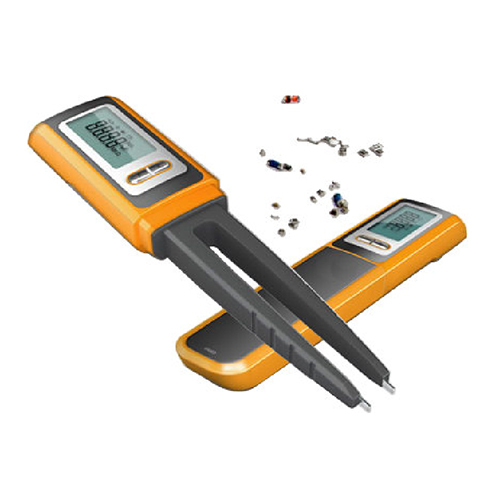

• Digital SMD Tester Pen RC Meter

• Accuracy
• 1.0% or better (varies by range)

• Application
• Measurement of resistance, capacitance, and sometimes inductance of SMD components

• Automation Grade
• Manual

• Control Mode
• Manual

• Display Type
• Digital LCD

• Features
• Compact, Auto-detection, LCD Display, Lightweight, One-hand operation

• Frequency
• Measurement Frequency: 1kHz typically

• Humidity
• Relative Humidity 10% to 80%

• Interface Type
• None (Handheld device)

• Machine Weight
• Approx. 50g

• Measuring Range
• See Test Range

• Mounting Type
• Handheld/Portable

• Number of Specimens
• 1 (per test)

• Operating Voltage
• 3V (Battery-operated)

• Power Supply
• Battery Operated (typically 3V - 2x AAA batteries or CR2032)

• Resolution
• 0.01, 1pF, 1H

• Response Time
• Approx. 1 second

• Specimen Size
• For standard SMD packages (0201 to 2512 and SOIC, SOT, etc.)

• Temperature
• Operating: 0C to 40C

• Test Range
• Resistor: 0.01-10M, Capacitor: 25pF-1000F, Inductor: 1H-100mH

• Test Speed
• Instantaneous (Auto-Detect)

• Usage
• Quick measurement and identification of SMD components

• Equipment Type

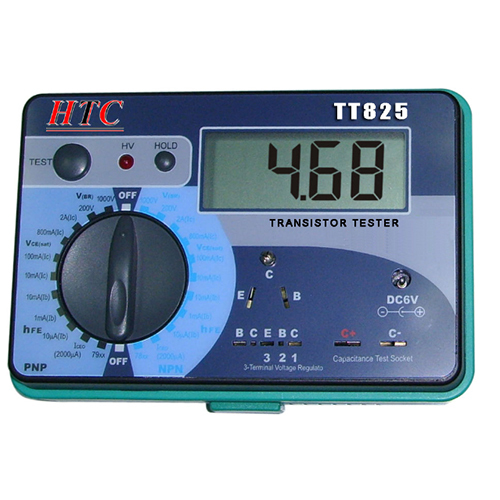

• Digital Transistor Tester

• Accuracy
• 1% (Typical)

• Application
• Transistor gain measurement, circuit testing

• Automation Grade
• Manual

• Control Mode
• Rotary Selection Switch

• Display Type
• Large Digital LCD

• Features
• Lightweight, Portable, Clear display, Multi-function testing

• Humidity
• 85% RH

• Interface Type
• Transistor socket, test lead input

• Machine Weight
• Approx. 200g

• Measuring Range
• hFE: 0~1000, Diodes, Continuity

• Mounting Type
• Handheld/Desktop

• Number of Specimens
• 1 at a time

• Operating Voltage
• 9V DC

• Port Size
• Standard Socket for Transistor Pins

• Power Supply
• 9V Battery

• Resolution
• 0.01

• Response Time
• <2 seconds

• Specimen Size
• Compatible with all standard transistor sizes

• Temperature
• 0C ~ 40C (Operating)

• Test Range
• hFE, Test Current, Output Voltage, Decay Function, Diode, Continuity

• Test Speed
• Manual/Instantaneous

• Usage
• Laboratory & Field Testing
