Digital Tachometer

• Equipment Type
• Digital Tachometer

• Accuracy
• 0.05%

• Application Media
• Rotating Machinery

• Axis Type
• Single Axis

• Color
• Gray

• Connecting Type
• Battery Powered

• Connectivity Type
• Battery Operated

• Diameter
• Standard Probe Diameter

• Dimension (L*W*H)
• Approx. 165mm x 58mm x 40mm

• Display Type
• Other, Digital LCD Display

• Housing Material
• ABS Plastic

• Humidity %
• <80% RH

• Input
• Optical/Contact

• Language
• English

• Length
• Standard Handheld Size

• Material
• ABS Plastic

• Measurement Range
• 2.5 - 99,999 RPM

• Measuring Units
• RPM, Revolution per Minute

• Model

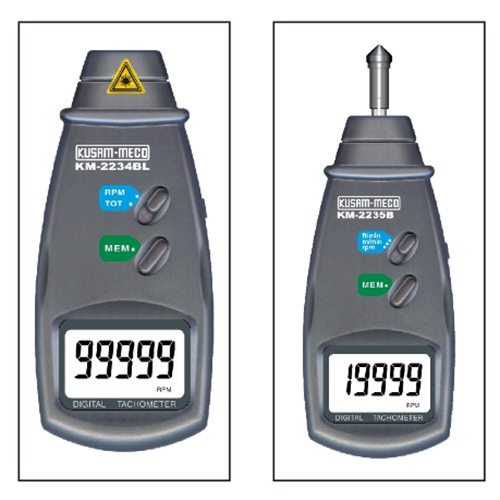

• KM-2234BL

• Mounting
• Handheld

• Operating Temperature
• 0C to 50C

• Power Consumption
• Low

• Power Supply
• 9V Battery

• Process Connection
• Contact Probe, Reflective Tape

• Protection
• ABS Casing for Drop Protection

• Range
• 2.5 to 99,999 RPM

• Resolution
• 0.1 RPM (<1,000 RPM), 1 RPM (1,000 RPM)

• Response Time
• <1 Second

• Sensitivity
• High

• Sensor Type
• Photo sensor/Contact

• Signal Type
• Optical/Contact

• Stability
• High

• Storage Temperature
• -10C to 60C

• Temperature Range
• 0~50C

• Equipment Type
• Photo/Contact Tachometer Laser

• Accuracy
• (0.05%+1d) of reading

• Application Media
• Rotating machinery, fans, compressors, motors, shafts

• Axis Type
• Single Axis

• Color
• Black

• Dimension (L*W*H)
• 215 x 65 x 38 mm

• Display Type
• Other, Large 5 Digit LCD Display

• Housing Material
• ABS Plastic

• Humidity %
• Max. 85% RH

• Input
• Laser Sensor / Mechanical Contact

• Language
• English

• Material
• ABS Plastic

• Measurement Range
• Photo: 2.0~99,999 RPM; Contact: 2.0~20,000 RPM

• Measuring Units
• Revolutions per Minute (RPM), Meters per Minute (m/min), Feet per Minute (ft/min), Inches per Minute (in/min)

• Model

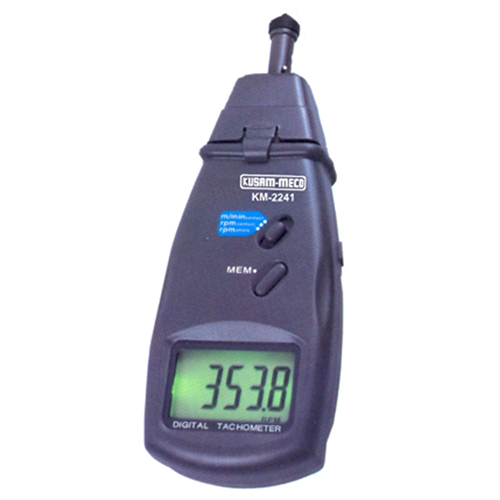

• KM 2241

• Mounting
• Handheld

• Operating Temperature
• 0C to 50C

• Power Consumption
• Approx. 40 mA

• Power Supply
• 4 x 1.5V AA batteries

• Range
• Photo: 2.0~99,999 RPM, Contact: 2.0~20,000 RPM

• Resolution
• 0.1 RPM (2.0~9,999.9 RPM); 1 RPM (10,000~99,999 RPM)

• Response Time
• Approx. 1 second

• Sensor Type
• Optical and Contact Type

• Signal Type
• Optical (Laser) and Mechanical (Contact)

• Stability
• High Stability Quartz Crystal Oscillator

• Storage Temperature
• -20C to 60C

• Temperature Range
• 0C to 50C (operating)

• Velocity Range
• 0.05~1999.9 m/min; 0.2~6560 ft/min; 0.2~7874 in/min
