Digital Storage Oscilloscope

• Application Media
• Testing and Measurement of Electronic Signals

• Color
• Grey/White

• Dimension (L*W*H)
• Approx. 400 x 310 x 170 mm

• Display Type
• Other, Colour CRT

• Frequency
• 25 MHz

• Input
• Dual Channel

• Material
• Plastic and Metal casing

• Measuring Units
• V/div (volts per division)

• Model

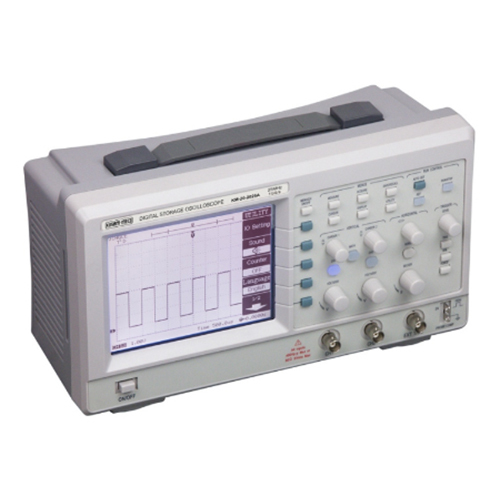

• KM-20-2025 CA

• Operating Temperature
• 0C to 40C

• Power Consumption
• Approx. 35W

• Power Supply
• 220 V AC, 50 Hz

• Protection
• Fused input with grounding

• Range
• Vertical range: 5mV/div to 20V/div

• Resolution
• 0.01 div

• Equipment Type
• Oscilloscope

• Accuracy
• 3% at full scale

• Application Media
• Electrical Testing

• Axis Type
• Dual Channel X-Y

• Color
• Grey/White

• Connecting Type
• BNC Connectors

• Connectivity Type
• Wired

• Connector
• BNC

• Dimension (L*W*H)
• 380 x 150 x 300 mm

• Display Type
• Other, Colour CRT

• Frequency
• 40 MHz

• Housing Material
• ABS Plastic

• Humidity %
• Up to 80% (Non-Condensing)

• Input
• Channel 1 & Channel 2

• Language
• English Markings

• Material
• ABS Plastic Housing

• Measurement Range
• 5 mV/div to 20 V/div

• Measuring Units
• Volts/Div, Time/Div

• Model
• KM-20-2040 CA

• Mounting
• Bench-top

• Operating Temperature
• 0C to 40C

• Output
• X-Y, Z Modulation

• Power Consumption
• Approx. 30W

• Power Supply
• 220V AC, 50/60Hz

• Process Connection
• BNC Input

• Protection
• Overload Protected Inputs

• Range
• 40 MHz Bandwidth

• Resolution
• High (Display depends on CRT)

• Response Time
• <2 ns

• Sensitivity
• 5 mV/div

• Signal Type
• Analog/Digital signals

• Stability
• Stable Triggering with Hold-off control

• Storage Temperature
• -10C to 60C

• Temperature Range
• 0C to 40C

• Accuracy
• High

• Application Media
• Electronic Signal Testing

• Color
• Light Grey

• Display Type
• Other, 100 MHz Colour CRT

• Frequency
• 100 MHz

• Input
• Dual Channel

• Material
• ABS Body with Metal Housing

• Measurement Range
• DC to 100 MHz

• Model
• KM-20-2100CA

• Operating Temperature
• 0C to 40C

• Output
• Signal Display on CRT Screen

• Power Consumption
• Less than 30W

• Power Supply
• 230V AC, 50Hz

• Protection
• Fuse Protected

• Resolution
• High
