Digital Multimeter 4 Digit

• Accuracy
• 0.5% (typical) DCV

• Application Media
• Electrical Measurements

• Color
• Yellow

• Current Range
• 200A to 10A

• Dimension (L*W*H)
• 160mm x 80mm x 40mm

• Display Type
• Other, 3 Digit LCD Display

• Material
• ABS Plastic

• Measurement Range
• DCV: 200mV~500V, ACV: 200V~500V, DCA: 200A~10A, Resistance: 200~2M

• Measuring Units
• V, A,

• Model

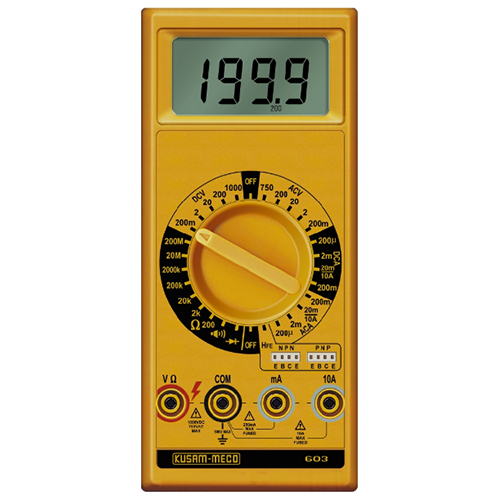

• 603

• Operating Temperature
• 0C to 40C

• Output
• Digital

• Power Consumption
• Low (<2mA typical)

• Power Supply
• 9V Battery

• Protection
• Overload Protection provided

• Range
• 1999 Counts

• Resolution
• 0.1mV (lowest DCV range)

• Accuracy
• Up to (0.025% + 2 counts) of reading for DC voltage

• Application Media
• Electrical, industrial, and electronic measurement

• Capacity
• Capacitance: up to 100 mF

• Color
• Yellow/Gray

• Connecting Type
• 4mm safety socket input

• Connectivity Type
• USB (via IR-USB adapter)

• Current Range
• 0.01 A to 10A AC/DC

• Dimension (L*W*H)
• 222 mm x 102 mm x 60 mm

• Display Type
• Other, Large 50,000-count, dot matrix display with white backlight

• Frequency
• 0.01 Hz to 100 kHz

• Input
• Direct electrical measurement via multimeter leads

• Language
• English (display interface)

• Length
• 222 mm

• Material
• Robust plastic housing with rubber overmold

• Measurement Range
• Voltage: 0.001 mV to 1000V; Current: 0.01 A to 10A; Resistance: 0.01 to 500 M

• Measuring Units
• V, A, , Hz, %, C/F, Farads, dBm

• Model

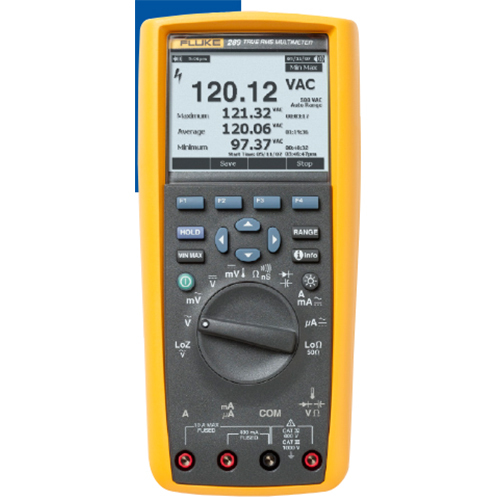

• Fluke 289

• Mounting
• Handheld

• Operating Temperature
• -20C to +55C

• Output
• Optical USB interface for PC connectivity

• Power Consumption
• Low power consumption, typically <10 mA in measurement mode

• Power Supply
• 6 x AA batteries or optional AC adapter

• Protection
• CAT IV 600V / CAT III 1000V; high energy fuse protection

• Range
• Automatic and manual ranging, up to 1000V AC/DC

• Resolution
• Up to 0.001 mV

• Response Time
• <1s for continuity and voltage

• Signal Type
• True RMS measurement for AC

• Storage Temperature
• -40C to +60C

• Temperature Range
• -40C to +400C (using optional probe)

• Equipment Type
• True RMS Logging Multimeter

• Accuracy
• Basic DC Accuracy: 0.025%

• Application Media
• Industrial electrical measurements

• Capacity
• Capacitance: 1 nF to 100 mF

• Color
• Yellow/Grey

• Connecting Type
• 4mm sheathed banana jacks

• Connectivity Type
• Optional USB interface

• Connector
• Banana plug

• Current Range
• 0.01 A to 10 A

• Dimension (L*W*H)
• 228 mm x 102 mm x 60 mm

• Display Type
• Other, Dot matrix LCD with white backlight and 50,000 count display

• Frequency
• 0.01 Hz to 1 MHz

• Housing Material
• Impact resistant plastic

• Humidity %
• 0 to 90% non-condensing (up to 35C)

• Input
• Voltage, current, resistance, frequency, temperature

• Language
• English

• Length
• 228 mm

• Material
• Robust plastic housing with protective yellow holster

• Measurement Range
• Voltage: 0.1 mV to 1000 V, Current: 0.01 A to 10 A

• Measuring Units
• mV, V, A, mA, A, Ohm, Hz, C, F, capacitance, continuity, diode

• Model
• Fluke 287

• Mounting
• Handheld

• Operating Temperature
• -10C to +50C (14F to 122F)

• Output
• USB interface for data transfer (with optional accessory)

• Power Supply
• 6 AA batteries (NEDA 15A, IEC LR6)

• Process Connection
• Test leads connection

• Protection
• CAT III 1000V/CAT IV 600V safety rated

• Range
• Autoranging up to 1000V/10A

• Resolution
• Up to 0.001 mV

• Response Time
• Typically <1 sec

• Signal Type
• True RMS

• Stability
• Long term drift <0.05%

• Storage Temperature
• -40C to +60C (-40F to 140F)

• Temperature Range
• -200C to +1350C (with optional probe)

• Equipment Type
• Handheld Digital Multimeter

• Accuracy
• (0.05%+1) for DC voltage

• Application Media
• Electrical measurement

• Capacity
• Capacitance measurement up to 10,000 F

• Color
• Yellow/Black

• Connecting Type
• 4mm input jacks

• Connectivity Type
• Standard banana jacks

• Connector
• 4mm banana plug

• Current Range
• 0.1 A to 10A (AC/DC)

• Dimension (L*W*H)
• 201 x 98 x 52 mm

• Display Type
• Other, Digital LCD, 4.5 digits, 20,000 counts

• Frequency
• Accurate True RMS AC frequency measurement

• Housing Material
• Shock-resistant case

• Humidity %
• 0% - 90% (non-condensing)

• Input
• Voltage, current, resistance, frequency, capacitance

• Language
• English markings

• Load Capacity
• Designed for industrial loads

• Material
• ABS Plastic housing

• Measurement Range
• DC Voltage: 0.001 mV to 1000V, AC Voltage: 0.01 mV to 1000V, Current: 0.1 A to 10A

• Measuring Units
• V, A, , F, Hz

• Model
• Fluke 87V

• Operating Temperature
• -20C to +55C

• Power Consumption
• Low, approximately 5 mA

• Power Supply
• 9V Battery

• Process Connection
• 4 input terminals

• Protection
• Overload protection, CAT III 1000V / CAT IV 600V

• Range
• Automatic and manual

• Resolution
• 0.01 mV

• Response Time
• <1s for standard measurements

• Sensitivity
• High sensitivity for low voltage/current

• Sensor Type
• Integrated multi-function probes

• Signal Type
• Analog and digital

• Stability
• High measurement stability

• Storage Temperature
• -40C to +60C

• Accuracy
• 0.5% (DCV)

• Capacity
• None (No capacitance mode)

• Color
• Yellow/Black

• Connector
• 4mm Banana Jack

• Current Range
• 200A-10A

• Dimension (L*W*H)
• 185mm x 90mm x 35mm

• Display Type
• Other, LCD Digital Display

• Frequency
• No direct frequency measurement

• Measurement Range
• DC Voltage: 200mV/2V/20V/200V/1000V, AC Voltage: 200V/750V, DC Current: 200A-10A, Resistance: 200-20M

• Measuring Units
• V, A, , Hz

• Model
• DM 23 Digital Multimeter

• Mounting
• Handheld

• Operating Temperature
• 0C to 40C

• Power Consumption
• Approx. 2mW

• Power Supply
• 9V Battery (6F22)

• Range
• DCV: 200mV-1000V, ACV: 200V-750V, DCA: 200A-10A, Resistance: 200-20M

• Resolution
• 1999 counts

• Temperature Range
• No direct temperature measurement

• Accuracy
• (0.5%+2) for DCV

• Application Media
• Electrical & Electronics Measurement

• Color
• Yellow/Black

• Connecting Type
• Banana Jack/Probe

• Connectivity Type
• Manual Probes

• Connector
• Standard Multimeter Test Lead

• Current Range
• 2mA-20A (DC and AC)

• Dimension (L*W*H)
• Approx. 190 x 90 x 40 mm

• Display Type
• Other, 4 Digit LCD Display

• Frequency
• 20Hz-200kHz

• Housing Material
• ABS Plastic

• Humidity %
• 80% RH (non-condensing)

• Input
• Voltage/Current/Resistance/Frequency/Diode/Continuity

• Language
• English Markings

• Material
• Plastic Housing

• Measurement Range
• DC Voltage: 200mV-1000V, AC Voltage: 2V-750V, DC Current: 2mA-20A, AC Current: 2mA-20A, Resistance: 200-20M

• Measuring Units
• V, A, , Hz

• Model
• 405

• Mounting
• Handheld

• Operating Temperature
• 0C to 40C

• Power Consumption
• Approx. 2mA

• Power Supply
• 9V Battery

• Protection
• Overload Protection

• Range
• Manual and Auto Range Selection

• Resolution
• 1999 Counts

• Response Time
• <2 seconds

• Signal Type
• Digital

• Storage Temperature
• -10C to 50C

• Equipment Type
• Digital Multimeter

• Accuracy
• (0.5%+2) (DCV)

• Application Media
• Electrical/Electronic Circuits

• Capacity
• Capacitance: 0-200F

• Color
• Red & Black

• Connecting Type
• 4mm Test Leads

• Connectivity Type
• Test Leads

• Connector
• Standard Banana Plug

• Current Range
• 0-20A

• Dimension (L*W*H)
• 190 x 90 x 40 mm

• Display Type
• Other, Large Digital LCD Display (19999 counts)

• Frequency
• 0.001Hz to 20MHz

• Housing Material
• ABS with Rubber Sleeve

• Humidity %
• 80% RH (max without condensation)

• Input
• Voltage, Current, Resistance, Frequency, Temperature

• Language
• English Markings

• Load Capacity
• 20A Max (10 seconds)

• Material
• ABS Plastic with Rubber Sleeve

• Measurement Range
• DCV: 0-1000V, ACV: 0-750V, DCA: 0-20A, Resistance: 0-200M

• Measuring Units
• V, A, , Hz, C

• Microphone
• No

• Model

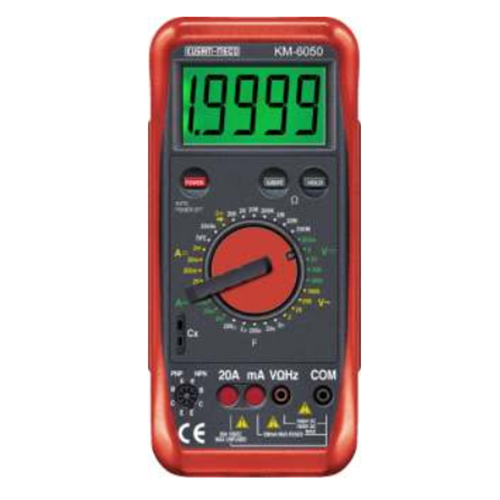

• KM 6050

• Mounting
• Handheld

• Operating Temperature
• 0C to 40C

• Output
• Digital Display

• Power Consumption
• Approx. 2mA

• Power Supply
• 9V Battery

• Process Connection
• Standard Test Leads Sockets

• Protection
• Mechanical Protection; Overload Protection

• Range
• Auto/Manual Range Selection

• Resolution
• 0.01mV / 0.01A / 0.1 / 0.001Hz

• Response Time
• Instantaneous (about 1s)

• Sensitivity
• High

• Sensor Type
• Electrical Measurement

• Signal Type
• DC/AC/Hz

• Stability
• High

• Storage Temperature
• -10C to 50C

• Temperature Range
• -20C to 1000C (with Type K Probe)

• Accuracy
• (0.5%+2) (depending on function and range)

• Application Media
• Electrical/Electronic Testing

• Color
• Red

• Connector
• 4mm Banana Type

• Current Range
• 200A to 10A (DC), 200A to 10A (AC)

• Dimension (L*W*H)
• Approx. 185 x 90 x 40 mm

• Display Type
• Other, 4 Digit LCD Display

• Frequency
• Yes, select functions

• Housing Material
• ABS Plastic

• Input
• Standard test leads

• Language
• English Markings

• Load Capacity
• Up to 10A Current

• Material
• Plastic Body

• Measurement Range
• 1999 Counts

• Measuring Units
• V / A / / Hz

• Model
• No 90 4 Digit 1999 Counts Digital Multimeter

• Mounting
• Handheld

• Operating Temperature
• 0C to 40C

• Output
• LCD Digital Readout

• Power Consumption
• Low

• Power Supply
• 9V Battery

• Process Connection
• Standard Probe Socket

• Protection
• Overload Protection on all ranges

• Range
• Manual/Auto selectable

• Resolution
• 1999 (4 Digit)

• Response Time
• Instantaneous (digital conversion update rate ~2-3 per sec)

• Signal Type
• True RMS (if available on certain functions)

• Stability
• High, for extended measurements

• Storage Temperature
• -10C to 50C
