Digital Ammeter And Voltmeter

• Accuracy
• 0.5% of full scale

• Batteries Type
• Not required (mains operated)

• Color
• Black casing with red LED display

• Dimension (L*W*H)
• 96 mm x 48 mm x 90 mm (typical)

• Frequency (MHz)
• 50/60 Hz (for AC version)

• Insulation Box
• Provided for electrical safety

• Material
• ABS Plastic Housing

• Measuring Voltage Range
• 0-200V / 0-500V DC or AC (custom models available)

• Operating Temperature
• 0C to 50C

• Product Type

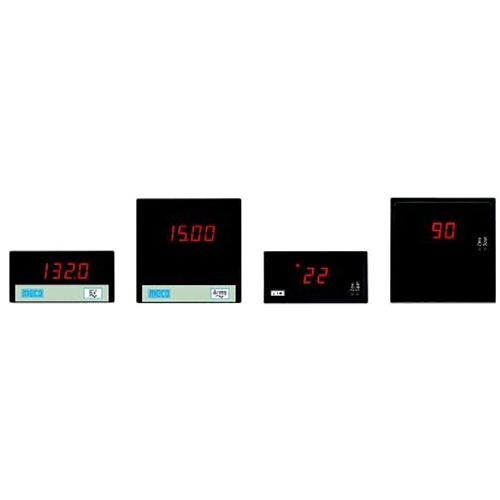

• 3 1-2 Digit Digital Ammeter and Voltmeter

• Protection System
• Overload and Reverse Polarity Protection

• Resistant Feature
• Shockproof and Dust Resistant

• Size
• Standard panel mount

• Usage & Applications
• Panel monitoring, Industrial control, Power distribution systems, Laboratory measurements

• Weight
• Approx. 250g

• Accuracy
• 0.05% of Reading 2 digits

• Batteries Type
• Not required (Powered by External AC/DC Supply)

• Color
• Black with Red LED Display

• Dimension (L*W*H)
• Approx. 96 x 48 x 90 mm / 72 x 36 x 90 mm / 48 x 24 x 90 mm depending on model

• Frequency (MHz)
• DC or 45-65 Hz (AC models)

• Insulation Box
• Yes, Flame Retardant Plastic Housing

• Material
• ABS Engineering Plastic

• Measuring Voltage Range
• 0-600V AC/DC (configurable)

• Operating Temperature
• 0C to 50C

• Pressure
• Atmospheric, not rated for pressurized environments

• Product Type

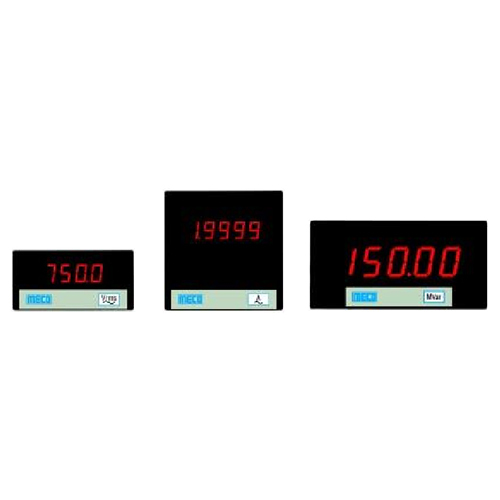

• 4 1/2 Digit Digital Ammeter and Voltmeter

• Protection System
• Overload and Reverse Polarity Protection

• Resistant Feature
• Shock and Vibration Resistant

• Size
• Standard Panel Mount (varies by model, approx. 96 x 48 mm, 72 x 36 mm, 48 x 24 mm)

• Usage & Applications
• Panel Meter for Electrical Panels, Industrial Control, Laboratory, and Power Distribution Systems

• Weight
• Approx. 180-350 g, depending on model
