Clamp Earth Tester

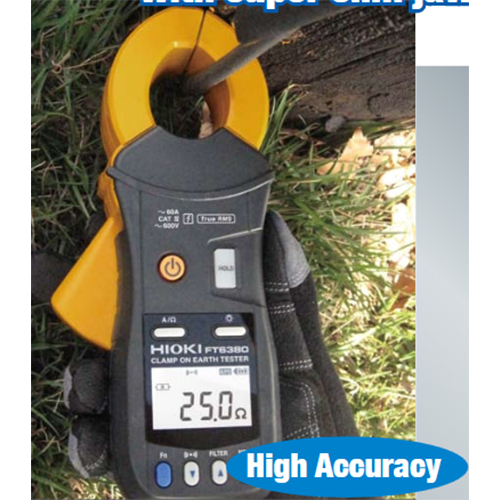

• Equipment Type
• Clamp On Earth Tester

• Accuracy
• 1.5% rdg 0.02 (for 1.00 to 199.9)

• Application
• Measuring earth resistance and leakage current

• Automation Grade
• Manual

• Control Mode
• Manual operation

• Display Type
• Digital LCD

• Features
• High accuracy, clamp-on design, portable

• Frequency
• Fundamental: 55Hz to 65Hz

• Humidity
• 80% RH or less (non-condensing)

• Machine Weight
• Approx. 780g including batteries

• Measuring Range
• 0.20 to 1200

• Mounting Type
• Handheld

• Number of Specimens
• 1 conductor per test

• Operating Voltage
• Battery operated

• Port Size
• 32mm jaw diameter

• Power Supply
• AA alkaline batteries (LR6) x 2

• Resolution
• 0.01 (0.20 to 20.99 range)

• Response Time
• Approx. 7 seconds

• Specimen Size
• Conductor up to 32mm diameter

• Temperature
• Operating: -10C to 50C

• Test Range
• Earth resistance: 0.20 to 1200

• Test Speed
• Less than 10 seconds

• Test Width
• Jaw opening: 32mm diameter

• Usage
• Earth resistance testing

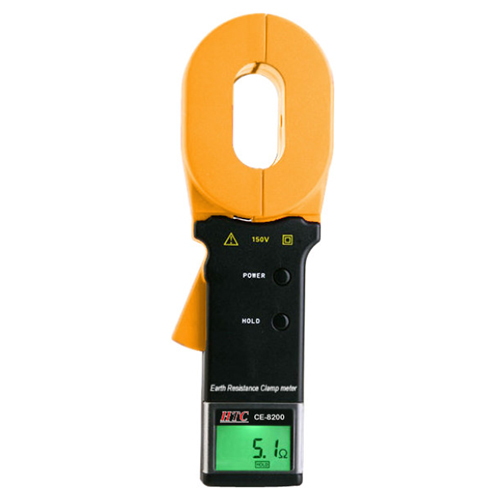

• Equipment Type
• Earth Resistance Clamp Meter

• Accuracy
• 1% +0.02 (depends on range)

• Application
• Measuring earth/ground resistance without auxiliary ground rods

• Automation Grade
• Manual

• Control Mode
• Manual

• Display Type
• LCD Digital Display

• Features
• No auxiliary rods required, data hold, max/min, alarm function, lightweight, backlit LCD

• Frequency
• 50/60Hz

• Humidity
• 85% RH

• Machine Weight
• About 1 kg

• Measuring Range
• 0.01-1200

• Mounting Type
• Handheld

• Operating Voltage
• 6V DC

• Power Supply
• 6V DC (4 x 1.5V AA batteries)

• Resolution
• 0.01

• Response Time
• Approx. 2 seconds

• Temperature
• Operating: 0C to 50C

• Test Range
• 0.01 to 1200

• Test Width
• Jaw Open Size: 32 mm x 64 mm

• Usage
• Industrial & field use for earth resistance testing
