Cathode Ray Oscilloscope (CRO)

• Equipment Type
• Oscilloscope

• Accuracy
• 3% (typical)

• Application Media
• Electrical waveform measurement

• Axis Type
• X and Y (dual axis)

• Color
• Beige

• Connecting Type
• BNC connector

• Connectivity Type
• BNC for probes and external connections

• Connector
• BNC

• Current Range
• Not directly measured

• Dimension (L*W*H)
• Approx. 320 x 150 x 400 mm

• Display Type
• Other, Cathode Ray Tube (CRT)

• Frequency
• Up to 20MHz

• Housing Material
• Metal with plastic components

• Humidity %
• <85% RH (non-condensing)

• Input
• 2 channel (dual trace), 1M / 20pF

• Language
• English panel marking

• Material
• Metal chassis

• Measurement Range
• DC-20MHz

• Measuring Units
• Volts/div, Time/div

• Model

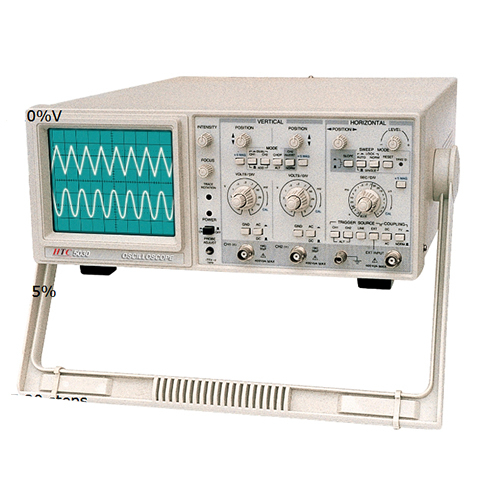

• HTC 5030

• Mounting
• Benchtop

• Operating Temperature
• 0C to 40C

• Output
• X-Y output; Z-axis input

• Power Consumption
• Approx. 30W

• Power Supply
• 220V AC 10%, 50/60Hz

• Process Connection
• Probe input

• Protection
• Fuse protected

• Range
• 0.5mV/div to 20V/div

• Sensitivity
• 0.5mV/div to 20V/div

• Signal Type
• Analog

• Stability
• Within 1% per hour

• Storage Temperature
• -10C to 60C

• Temperature Range
• 0C to 40C (Operating)

• Accuracy
• 3%

• Application Media
• Electrical Signal Measurement

• Capacity
• Dual Channel

• Color
• Grey/Beige

• Connector
• BNC

• Dimension (L*W*H)
• Approx. 405 x 305 x 130 mm

• Display Type
• Other, CRT Analog Display

• Frequency
• Up to 20 MHz

• Input
• Dual Channel, 1 M Impedance

• Material
• Metal and ABS Housing

• Measurement Range
• 2 mV/div to 20 V/div

• Model

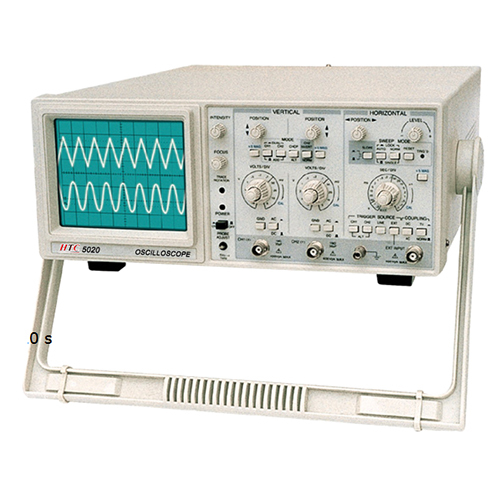

• HTC 5020

• Mounting
• Bench Top

• Operating Temperature
• 0C to 40C

• Output
• Calibrator Output

• Power Consumption
• Approx. 40W

• Power Supply
• AC 230V, 50Hz

• Protection
• Fuse Protected

• Range
• 20 MHz Bandwidth

• Resolution
• High-Resolution Trace Display

• Response Time
• Fast Rise Time

• Sensor Type
• Voltage Probe

• Signal Type
• Analog

• Application Media
• Waveform observation, electrical signal analysis

• Color
• Beige

• Connectivity Type
• Analog BNC Connector

• Dimension (L*W*H)
• Approx. 330 x 150 x 400 mm

• Display Type
• Other, CRT Analog Display

• Frequency
• up to 20 MHz

• Housing Material
• High-impact ABS plastic

• Input
• Dual Channel

• Measurement Range
• Vertical: 5 mV/div to 20 V/div; Horizontal: 0.2 s/div to 0.5 s/div

• Model

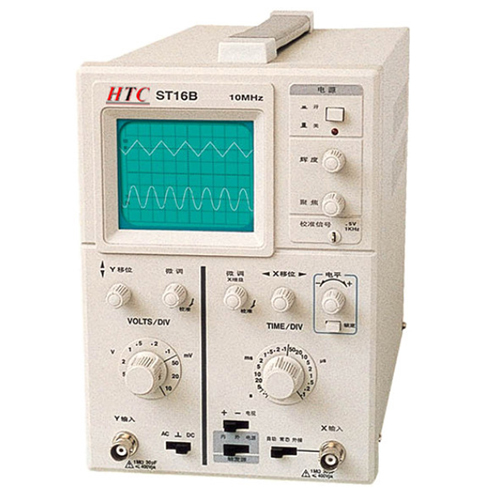

• ST 16B

• Operating Temperature
• 0C to 40C

• Power Supply
• AC 220V/50Hz

• Resolution
• High resolution waveform display
