Calibrator

• Accuracy
• 0.02% of reading (typical)

• Batteries Type
• 9V Battery (Dry Cell)

• Color
• Yellow & Black

• Dimension (L*W*H)
• Approx. 180 mm x 90 mm x 50 mm

• Frequency (MHz)
• DC/Low Frequency (non-AC calibrator)

• Insulation Box
• Yes, with durable outer housing

• Material
• ABS Plastic Body with Rubber Protective Cover

• Measuring Voltage Range
• 0 to 20V DC (typical)

• Operating Temperature
• 0C to 50C

• Product Type

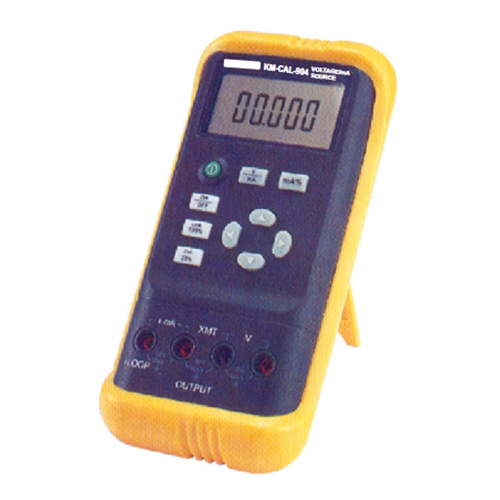

• VmA Calibrator

• Protection System
• Overload and short-circuit protection

• Resistant Feature
• Shock and drop resistant outer cover

• Size
• Handheld, compact

• Usage & Applications
• Testing, calibrating, and troubleshooting process control instruments (Current & Voltage)

• Weight
• Approx. 450 grams

• Accuracy
• 0.02% of reading + 1 digit

• Batteries Type
• 9V Battery

• Color
• Yellow and Black

• Dimension (L*W*H)
• Approx 200 x 98 x 50 mm

• Insulation Box
• Yes, provided with protective rubber housing

• Material
• ABS Plastic Body

• Measuring Voltage Range
• 0-199.99 mV

• Operating Temperature
• 0C to 50C

• Product Type

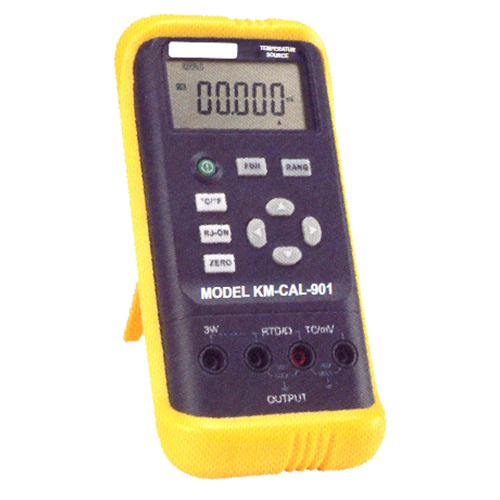

• Temperature Calibrator

• Protection System
• Overload and input protection

• Resistant Feature
• Shockproof, Dustproof (with rubber enclosure)

• Size
• Handheld/Portable

• Usage & Applications
• Calibration of temperature sensors, thermocouples, RTDs, process testing

• Weight
• Approx 500 g
